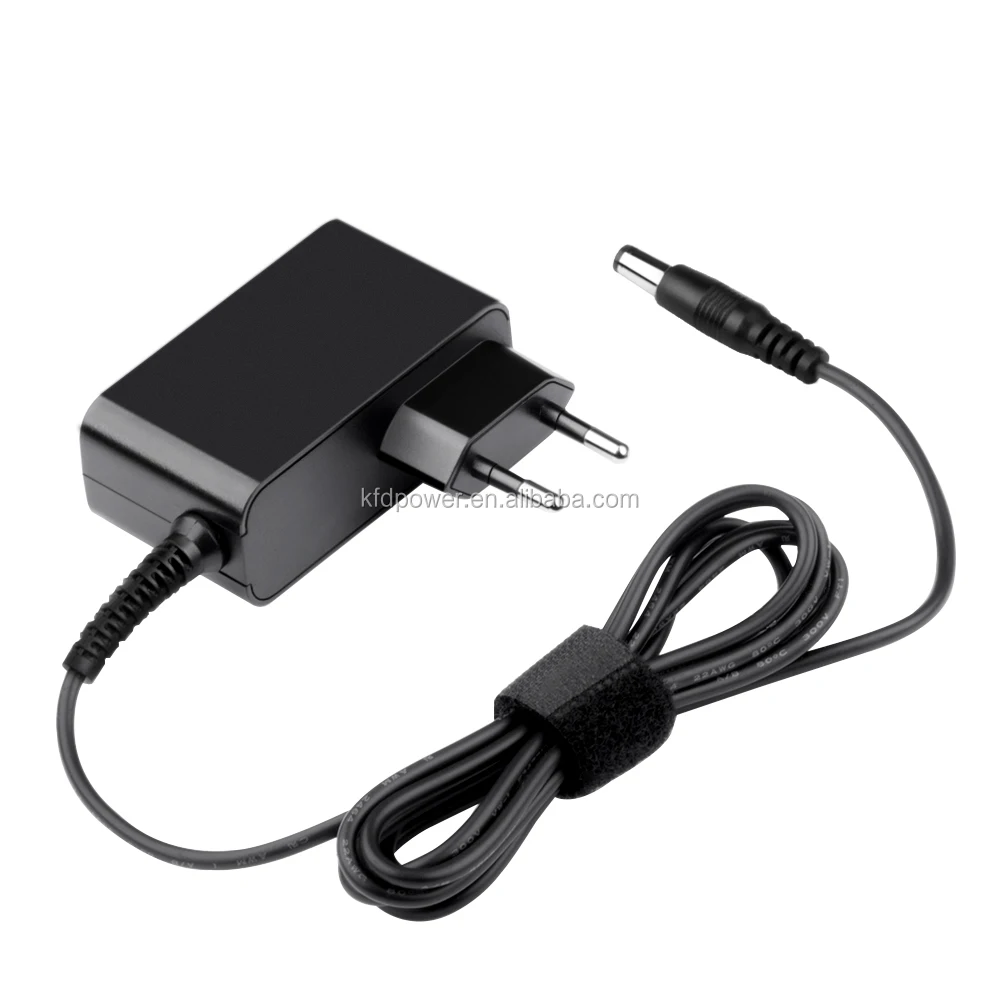

12V Power Adapter Charger for MINI PC MINIX

FOB Reference Price:Get Latest Price
$2.90 - $3.30 / Pieces | 300 Piece/Pieces 5V Power adapter (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
KFD
Model Number:
Q36C
Output Power:
1 - 50W
Output Type:
Single
Input Voltage:
100V-240V 50Hz/60Hz
Output Voltage:
24VDC
Output Frequency:
50/60Hz
Output Current:
2A 3A
Product Name:
12V Power Adapter Charger for MINI PC MINIX
Certification:
UL GS CB CE-EMC CE-LVD
EMI STANDARD:
EN55022 EN55032 EN60950
Rated Input Voltage:
100V~240V 0.4A 50Hz/60Hz
Input Inrush Current:
less than 50A
Efficiency:
87% DOE VI/level VI /CoC V5.0
Size:
L72*W38.5*H28mm
Warranty:
2 Years
Protections:
Shortcuit Overtemp Overload Overtemp
DC TIP:
Micro USB/5521/5525/4817/USB-Cetc
Supply Ability
Supply Ability:
28000 Piece/Pieces per Day 24V 36W max us/uk/eu/au ac plug power adapter 24v 1A led switch
Packaging & Delivery
Packaging Details
Q36C 12V switching power adapter
Normal package:
1:one charger in one OPP Bag and kraft paper box
Carton Size:53.5*30*29cm
50pcs/carton
2: one adapter in a OPP bag
Carton Size:53.5*30*29cm
100pcs/honeycomb Box
3: OEM
Port
shenzhen
Lead Time :
500-1000pcs: 5workdays; 1001-5000pcs:10~15workdays; >10000pcs:25

12V Power Adapter Charger for MINI PC MINIX

Product Description
12V Power Adapter Charger for MINI PC MINIX

POWER ADAPTER PARAMETERS
Material:

PC Flame resistance applies to UL94-V1

Adapter Dimensions:L72*W38.5*H28mm
DC Cable180cm or OEM
Internationsal Safety Certificates:UL GS CB CE-EMC CE-LVD
Efficiency Level:

87% min. measured at 100Vac and 240Vac input voltage, maximum load . Meet CEC,Energy Star 3.0 (level VI), CoC V5.0, All data was measurement at pcb end.

DC TIP Spec

5.5*2.5/5.5*1.7/2.5*0.7/5.5*2.1/4.0*1.7/2.0*1.0/4.8*1.7/3.5*1.35/4.0*1.35/5.5*3.0/3.0*1.0/4.5*3.0/OEM

Operating Temperatur

-10°C TO 40°C Full load, Normal operation.

Operating Humidit

5%(0℃)~90%(40℃),RH,72Hrs,Full load, Normal operating.

Storage Humidity

5% ~ 95% RH. Non-condensing

Input Inrush Current

With cold starting, the Input Inrush current should less than 30A

Protection OCP OVP SCP
PowerMAX 36Watts
Input Plug Type

Wall-mount VDE type(with holes)Conductors

Aging Test100% full-load aging test
APPLICATIONS
1. LED Lighting/LED Lamps 2. LCD (liquid crystal display)
3. DVE4. CCTV Camera
5. ATX6. CATV
7. RC Hobby8. Audio And Video Products
9. DVB10. Medical Equipments
11. Motor12. Communication Equipments
13. Military Equipments14. Instrument And Meter
15. Electronic Refrigerator  16. Security
17. Industrial Machinery18. Computer Case
19. Scientific Equipments20. VMIC
21. Print22. 3D print
23.High current systems24.robot control
25.air purifier26.shipbuilding equipments
27.digital products28.POWER SOLUTIONS



Company Information



 USB-C Charger

laptop adapters for hp/dell/acer/toshiba/samsung/apple/lenovo IBM/sony/gateway/Liteon/Hipro/LG/Gateway etc.

swithcing adpater 5V -32V, 48V, 1A -12A for LED/LCD monitor, all-in-one pc, printer,
router adapter & another home appliances power supply

printer adapter for HP printer

Smart portable car charger

universal adapter, Tablet PC charger power supply

Our Services
  1. 2 years warranty
  2. Samples for testing only
  3. Strong R&D,5~7 new product every year
  4. International Safety Quality
  5. Professional product specialist & export Specialist & experienced staff providing best service together
  6. Adequate Inventory
  7. Special Team Annual visiting abroad 4 months every year
  8. Germany Office with warehouse
  9. OEM & ODM service
